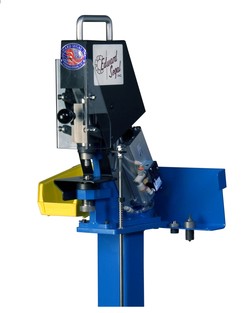

Portable Pneumatic Press

The Model 3P6-X is a portable pneumatic press specifically designed for applications that require grommets larger than a No. 4. The X is the larger, more robust version of the 3P6. This unit weighs 45 lbs and measures 17-1/2" tall, 4-1/2" wide and 14" deep. This machine is built on a sturdy welded frame and designed for safe operation, portability and ease of use.

Even though the 3P6-X is specifically designed for the larger grommets, it comes with an adapter to run the standard 3P6 tool for smaller grommets (No. 00 to 4). All of the setting tools in the 3P5, 3P6 and X versions are interchangeable, and are simply threaded in-place to facilitate fast conversions between grommet sizes.

The 3P6-X is designed to be portable or bench mounted. Several alternative configurations allow the 3P6-X to be used in the most productive manner including: (a) Pedestal Stand with optional foot pedal; (b) Mobile Base for floor work; and (c) Tool Rack with Storage Bins.

The 3P6-X delivers an efficient solution to the ergonomic challenges of using a hammer or manual press to set oversized grommets. THis machine is capable of punching a hole in a variety of heavy-duty industrial fabrics and set a grommet and washer, all in a single cycle. Certain materials, however, may require pre-punched holes.

Optional Equipment
· Pedestal Stand with optional Foot Pedal
· Mobile Base for floor work
· Tool Rack with Storage Bins

Dimensions (W x D x H)
· Bench: 17-1/2" x "4-1/2" x 14"
· On Stand: 40" x 18" x 19"
Working Height
· Bench: 5-1/8"
· On Stand: 43-1/8"
· Bench: 45 lbs
· On Stand: 115 lbs
Electrical: None
Air: 100 psi, 4.2 cfm

The base alone ships UPS or Fedex
On Stand ships LTL, CL 92.5
