A manufacturer of a wide variety of eyelet, rivet and grommet attaching machines

360 Reynolds Bridge Road
Thomaston, CT 06787
(860) 283-5821

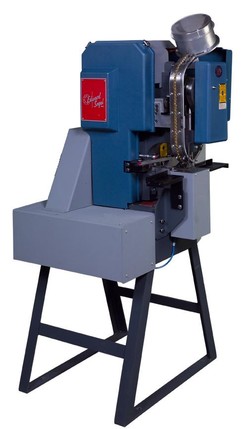

Heavy Duty Grommet Machine - Fully Automatic

The Edward Segal Inc. Model 92GW is a fully automatic grommet machine that punches a hole in the material and feeds and attaches both the grommet and washer, all in a single cycle. The result is a strong, durable quality setting with greater productivity, all leading to a fast return on investment. The machine was specifically designed for heavy duty industrial fabrics including Kevlar and Nylon.

· Increased Productivity: customers           report increases in excess of 300%         over conventional double revolution         grommet machines.
· Compensator: to allow variance in           material thickness of up to .125".
· Stripper Plate: to lift grommet setting       off of the pilot of the set die.
· Increased Safety: the operator does not   have to put fingers in the setting area to   load the washer.

Optional Equipment
· Mobile Machine Stand with Casters
· Adjustable Spacing Gauge
· Laser Target Light Dimensions

Dimensions (W x D x H): 36" x 36" x 66"
Weight / Crated: 700 lbs / 850 lbs
Electrical: 115 Vac, 60 Hz
Motor: 1/2 HP, Single Phase
Air: 50-60 psi; 0.2 cfm
